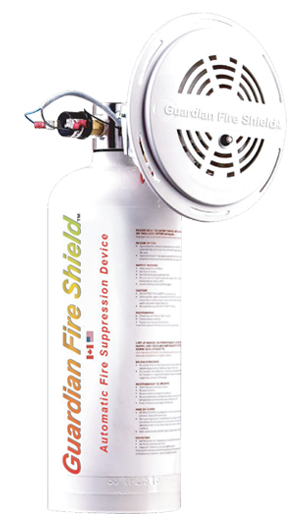

Guardian Fire Shield™ FEATURES |
The Guardian Fire Shield™ was independently tested to provide effective fire suppression in at least a 16' x 16' area. |
The heat-activated trigger means the Guardian Fire Shield™ will not discharge in the presence of smoke. It must be extremely hot (ie. a
real fire) in order for the unit to automatically discharge. |
Unlike water suppression systems, the dry-chem agent in the Guardian Fire Shield™ does not cause extensive damage when discharged. |
|
The non-toxic, dry-chem agent used in the Guardian Fire Shield™ is safe when discharged, as it is essentially a form of baking soda. |
The super-fine ABC dry-chem agent inside the Guardian Fire Shield™ cleans up easily with a vacuum in the event of a discharge. |
Guardian Fire Shield™ can protect your loved ones and your valuables for 10 years. (not including battery replacement and being replaced due
to activation.) GFS should be serviced at 5 yr. intervals, with the unit being replaced on the 10th yr. for re-certification. A nominal fee will apply. |
The Guardian Fire Shield™ comes with a 1 year limited warrranty. |
Since cold temperatures won't affect performance, the Guardian Fire Shield™ is perfect for use in outbuildings of all kinds (sheds, barns,
garages etc.). No power is required either. |
Manufactured with Certified Components. |
Guardian Fire Shield™ SPECIFICATIONS |
Unit weight:
7.4 lbs. (including 5 lbs. dry-chem)
Unit dimensions:
4 ⅜” diameter tank, 15 ⅝” tall, 7 ½” deep
at faceplate
Packaged weight:
8.4 lbs.
Packaged dimensions:
8 1/16” wide x 9 1/2” deep x 17 1/2” tall
|
Tank Pressure:
175 psi
Activation temperature rating:
135℉ = 57℃
Effective Temperature Range:
-45℃ (-49℉) to 57℃ (135℉)
Single unit tested suppression coverage
16’ x 16’ room = 256 sq. ft. (at 8’ ceiling height)
Product life span:
10 years NOTE: replaced on the 10th yr. for recertification of its cylinder pressure.
Battery (for LED low-pressure indication):
9V
|
|
Guardian Fire Shield™ provides a 1 year warranty on its technology and works with Insurers/Underwriters to reduce building insurance premiums.
|
Guardian Fire Shield™ CERTIFICATIONS |
|
|
GFS CERTIFICATIONS
Flame Retardant Plastics
E138590
Sealant LOCTITE 567
MH8007 |
|
For more information on the Guardian Fire Shield™ download our brochure
|
| |
Guardian Fire Shield™ INSTALLATION - EASY AS 1 - 2 - 3 |
|
|
WANT A PROFESSIONAL INSTALLER?
|
FIRE FACTS AND STATS
1. Cooking fires are the number one identified ignition source of residential fires
"Fire Losses: Causes, Trends, Issues." Fire Losses: Causes, Trends, Issues. Ministry of Community Safety and
Correctional Services, 8 Feb. 2016. Wed. 31 Mar. 2016.
2. Modern homes burn eight times faster than homes built 50 years ago
UL Fire Safety Journal, 2014 Vol. 1
3. Between 2009-2013, residential occupancies accounted for 72% of structure loss fires across Ontario
"Fire Losses: Causes, Trends, Issues." Fire Losses: Causes, Trends, Issues. Ministry of Community Safety and
Correctional Services, 8 Feb. 2016. Wed. 31 Mar. 2016.
|
|
